Product Description:

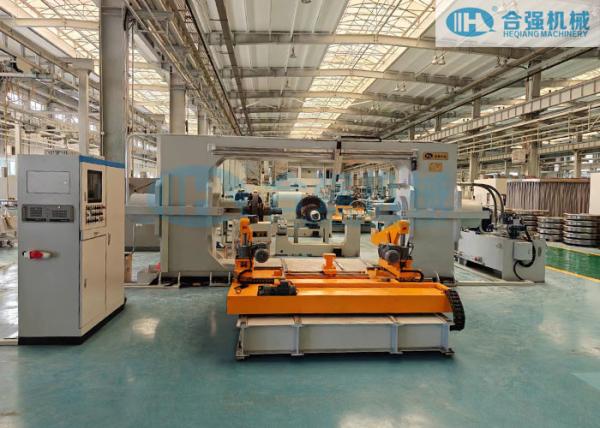

This Hydraulic Wheelset Press is a horizontal hydraulic wheel
assembly press machine, mainly used for mounting the locomotive
wheelset wheels, and perform the backpressure test. The operation
is automatically controlled by Siemens PLC and AdvanTech industrial
PC. Only one operator is required to complete all the operations.
The machine will be provided a high-pressure oil injection system
for easy wheel mounting and dismantling, and generate the required
pressing reports.
Features:
- A horizontal type hydraulic wheelset mounting press.
- Both with or without foundation pit installation are ok.
- Only one operator required to operate the wheel press. Fully
automatic control.
- Double-ended hydraulic cylinders
- Only one positioning to proceed both wheels' mounting without
reversal of the axle
- Unique Invention patented cylindrical ram for wheel mounting, with
high pressing accuracy
- Special patented centring devices at both ends of two ram cylinders
for center hole positioning.
- Gantry frame structure, with high strength, good rigidity and less
deformation
- An electrical trolley is provided for wheelset loading/unloading
onto/off from the press
- Siemens S7-300 PLC and AdvanTech industrial PC to control the
operation.
- 2 operation modes: Automatic and Mnual.
- With advanced measurement system and recording system to detect and
record the required data and display it on the screen.
- The machine will be provided a high-pressure oil injection system
for easy wheel mounting and dismantling.
Technical Parameters:
| Parameter | Value |
|---|
| Product Name | Double cylinder Wheelset Press |
| Functions | Mounting railway wheelsets and do backpressure test |
| Max. Cylinder force | 3500 kN |
| No. of hydraulic cylinder | 2 (1 left and 1 right) |
| Piston stroke | 800 mm |
| Pressing speed | 0~5 mm/s |
| Fast forward / return speed | 0~20 mm/s |
| Pressure sensor accuracy | 0.25%FS |
| Displacement sensor accuracy | 0.01 mm |
| Ram positioning accuracy | ≤ 0.01mm |
| Max. hydraulic system pressure | 31.5 MPa |
| Power supply | 3-PH AC, 380V/50HZ |
| Total installed power | ≤ 30 kW |
| Pressing cycle time | ≤ 15 minutes/axle |
| Max. wheelset weight | 8000 kgs |
| Wheel diameter range | 1150~1250 mm |
| Axle length range | 2200~2500 mm |
Applications:
Heqiang Machinery's Wheelset Press is a hydraulic wheel press
machine, specially designed for wheelset assembly. It is applicable
for a maximum wheel diameter of 1250mm, making it perfect for a
wide range of applications. Made from high-strength steel. The
packaging is nude packages and wooden cases and the delivery time
is 6 months after down payment and design approval. Payment can be
made by T/T or L/C. Heqiang Machinery's Wheelset Press is ideal for
railway maintenance workshops and vehicle production factories.
Customization:
Are you looking for a reliable horizontal wheel press supplier?
Heqiang Machinery presents you the best Wheelset Press available in
the market. Our press suits for the wheelsets with a maximum weight
of 8T, wheel diameter of 1150~1250mm and maximum axle length of
2500mm. The machine weight is about 30T with a total installed
power of 30 KW. The press will be detail designed according to the
provided wheelset drawings and other requirements after the
contract is awarded.
Ordering our Wheelset Press is very simple. The minimum order
quantity is 1 set and the delivery time is 6 months after down
payment and design approval. We accept payment terms such as T/T
and L/C. We also provide nude packages and wooden cases for
packaging.
What are you waiting for? Contact us now and get your Wheelset
Press from Heqiang Machinery!
Support and Services:
We are committed to providing our customers with the best possible
technical support and service. We provide a comprehensive range of
services to ensure that your WheelSet Press product is working
optimally.
Our technical support staff is available 24 hours a day, 7 days a
week to answer any questions you may have about your WheelSet Press
product. We offer phone, email, and chat support, as well as online
tutorials and FAQs. If you need assistance with installation or
product use, we can help.
We provide a range of product service options for WheelSet Press
products. Our product service includes repairs, maintenance,
upgrades, and more. We also offer warranties on select products,
and our knowledgeable technicians can help you make the most of
your WheelSet Press product.
Packing and Shipping:
Wheelset Press are packaged in nude package and wooden cases,
securely packed in a box with protective materials to ensure that
your product arrives in perfect condition.
The shipping space required for one such wheelset is 2 containers -
1x20'GP + 1x40'HQ.
