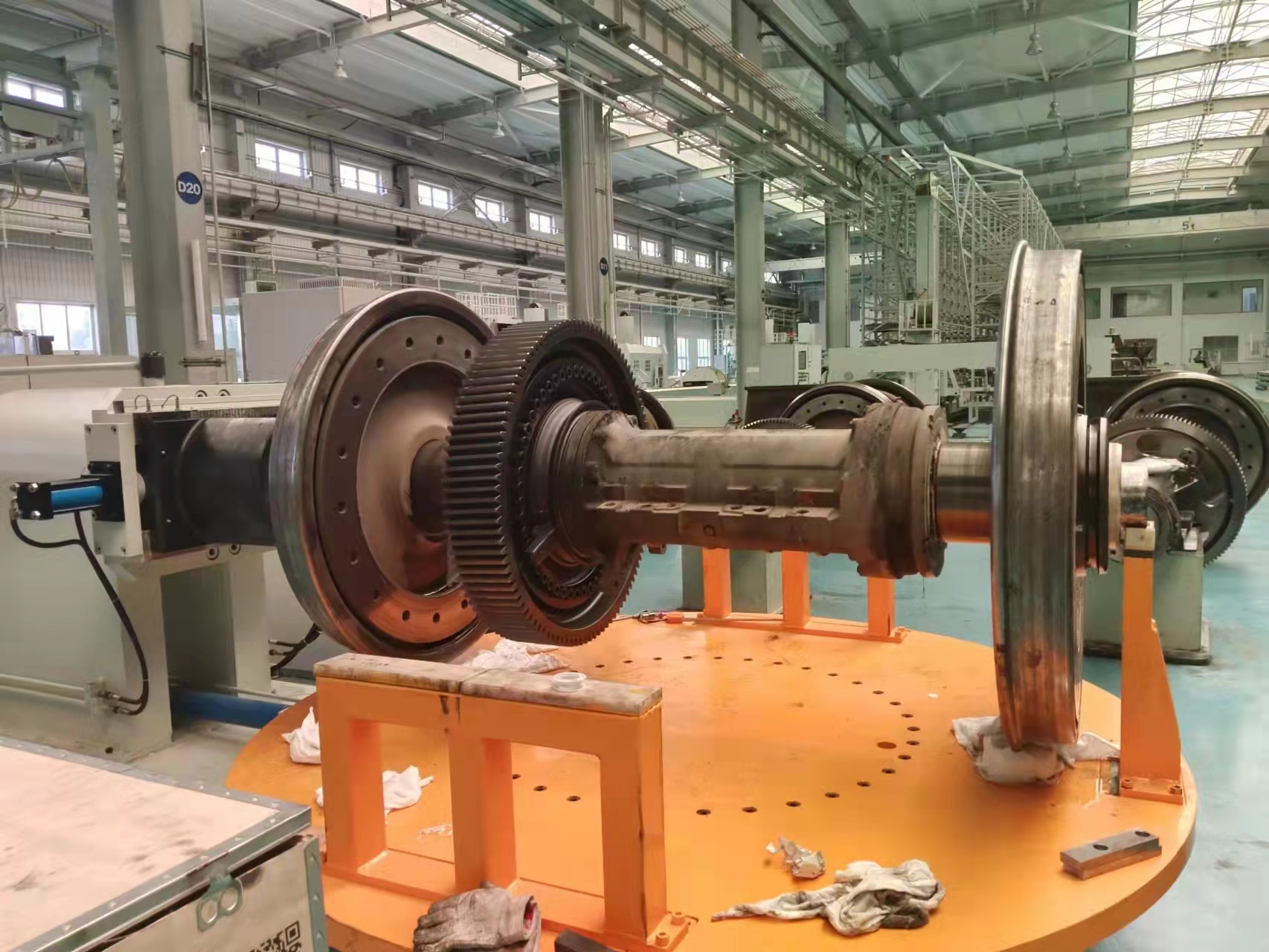

    350t Wheelset Press For Wheel Disassembly And Backpressure Test

    Ask Lasest Price
    Brand Name : Heqiang Machinery
    Model Number : HQ11
    Certification : ISO9001
    Delivery Time : 4 months after down payment and design approval
    Payment Terms : T/T, L/C
    Price : USD130,000~200,000 per set
    Supply Ability : 40 sets per year
    • Product Details
    • Company Profile

    350t Wheelset Press For Wheel Disassembly And Backpressure Test

    Product Description:

    Wheelset Press is a powerful and efficient hydraulic wheel press system. It's used for wheel disassembly and backpressure test. The system is controlled by a PLC for precise and stable operations. The pressure sensor is installed for pressure monitoring. Wheelset Press is designed to meet the needs of various industrial applications, providing a reliable and effective hydraulic wheel press solution.

    Features:

    • Product Name: Wheelset Press
    • Material: High-strength Steel
    • Control System: PLC Control
    • Pressure Accuracy: 0.25%
    • Power Supply: 380V/50HZ
    • Hydraulic Wheel Press For Wheel Disassembly And Backpressure Test
    • Wheelset Mount and Dismount Press
    • Wheel press-fitting machine for

    Technical Parameters:

    ParametersDetails
    Product NameWheelset Press
    Pressure MonitoringPressure Sensor
    Max. Wheel diameter1250mm
    Max. Axle length2500mm
    Max. Pressing Force3500kN
    Safety ProtectionEmergency Stop Button
    Total Installed PowerMax. 25 KW
    Control SystemPLC
    Power Supply380V/50HZ
    Pressure Accuracy0.25%FS
    TypeHorizontal Press, Hydraulic Wheel Press, Wheelset Mount and Dismount Press

    Applications:

    The Heqiang Machinery's Wheelset Press (Model No.: HQ11) is a horizontal press machine For Wheel Disassembly and Backpressure Test, certified with ISO9001 from China. It is designed with a Max. cylinder force range of 350T to suit the wheelset with a max. weight of 8T, max wheel diameter of 1250mm and Max. Axle length of 2500mm. With recording system to record the data and form the pressing report of the backpressure test.

    Customization:

    Wheelset Press Customized Service by Heqiang Machinery

    Heqiang Machinery offers horizontal press, wheelset mount and dismount press, and wheelset press services with the following features:

    • Brand Name: Heqiang Machinery
    • Model Number: HQ01
    • Place of Origin: China
    • Certification: ISO9001
    • Minimum Order Quantity: 1 set
    • Packaging Details: Nude packages and Wooden cases
    • Delivery Time: 4 months after down payment and design approval
    • Payment Terms: T/T, L/C
    • Max. Wheel Diameter: 1250mm
    • Pressure Monitoring: Pressure Sensor
    • Max. Wheelset Weight: 8T As Per Required
    • Material: High-strength Steel

    Heqiang Machinery is committed to providing custom tailored wheelset press services for your exact needs!

    Support and Services:

    Wheelset Press Technical Support and Service

    Wheelset Press provides customer support and service for its products. Our technical support and service team is available to assist with any issues you may have with our products. We offer a range of support services, including troubleshooting, installation assistance, and product updates.

    If you need help with a Wheelset Press product, please contact us at sales@heqiangmachinery.com. We will respond to your request promptly.
