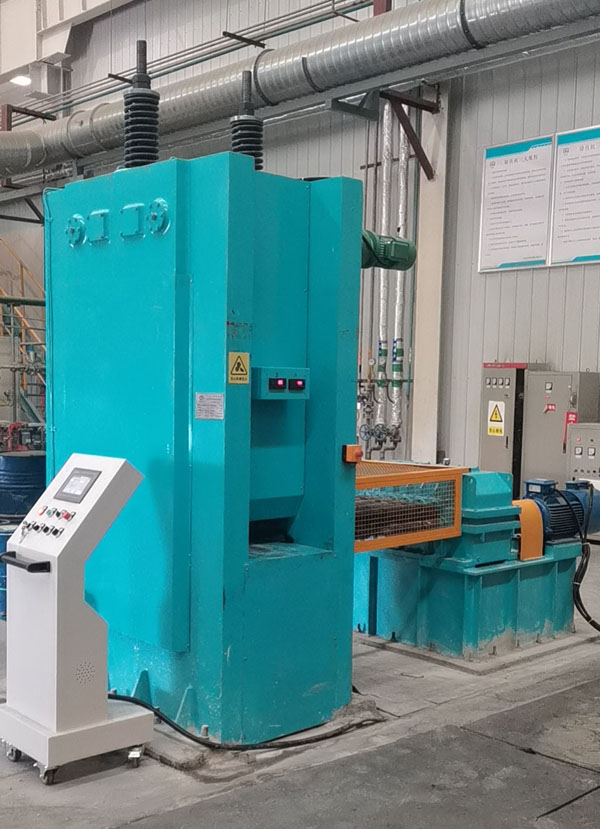

13-Rolls Thin Plate Hot Straightening Leveling Machine High-Temperature work

Application scope:

This plate straightening leveling machine is applicable for the leveling (hot straightening) work of the Tungsten plates and Molybdenum plates. Leveling temperature not more than 1200℃.

Technical Parameters:

*Above parameters are indicative and can be modified as per customers's actual requirements.)

Machine Features:

• This plate straightening machine is used together with the hot rolling mill in a assembly line.
• With hot leveling function.
• Need multiple reciprocating leveling for thin plates.
• Overall steel welding frame structure, carried out stress annealing relief treatment after welding. The frame structure with high strength and rigidity.
• The main machine is equipped with side vertical roller to limit the deviation of steel plate during conveying.
• The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
• All the roll bearings are self-aligning roller bearings.
• With Automatic feeding and discharging roller table to facilitate the feeding and exiting of the straightening machine. The feeding roller table is equipped with a plate centering device and the rollers are powered.
• The sheets to be levelled can feed from both sides, and leveled repeatly.
• It's suitable for the leveling of medium plate, high-precision and high strength plates.
• Digital display, PLC control. Visual input, edit, modify and store process parameters.

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
