4-Rolls Aluminium Plate Bending Machine With Top Support Siemens PLC

Technical Parameters:

*Above parameters are indicative and can be modified as per customers's actual requirements.)

Machine Features:

• The 4-roll plate bending rolling machine has the functions of pre-bending and rounding It’s mainly composed of chassis, overturning side frame, fixed side frame, 4 work rolls, driving device, lifting device of lower and side rolls, overturning device, upper roll balance device, hydraulic system, electric control system, Top Support and etc.
• The upper and lower rollers are driving rollers. Through the hydraulic motor, planetary reducer meshing with the upper and lower rollers, the power will provide torques for plate bending.
• The lower roller can move vertically to clamp the plate. The side rollers are provided on both sides of the lower roller. It can be driven by hydraulic cylinders for diagonal lifting movement.

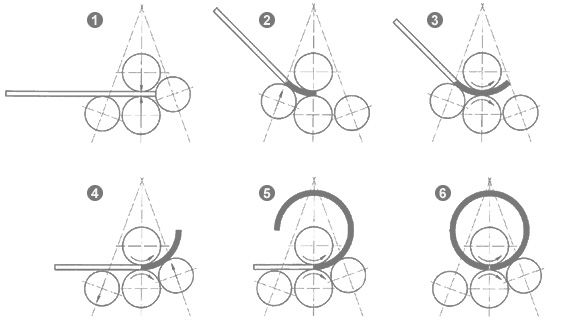

• All four rollers adopt spherical roller bearings. The advantage of this machine is that it can complete the pre-deformation of the plate ends and roll the cylindrical and arc shapes at one time without the aid of auxiliary devices. It can also perform certain shaping and leveling work on the metal sheet with small remaining straight edges.
• The lifting of the lower and side rollers are driven by hydraulic cylinders. Quick lifting under non-load while slow lifting under load.
• The machine is provided with measures to prevent the steel plate from slipping. Each motor is equipped with an instant brake, so that the roller can stop rotating accurately during bending, ensure the precise positioning of the plate end, and prevent the plate from slipping off the machine, and minimize the remaining straight edges.
• With Top support to support the bended cylindrical shape.
• Siemens PLC NC system
• With function of plate bending and coiling.

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
