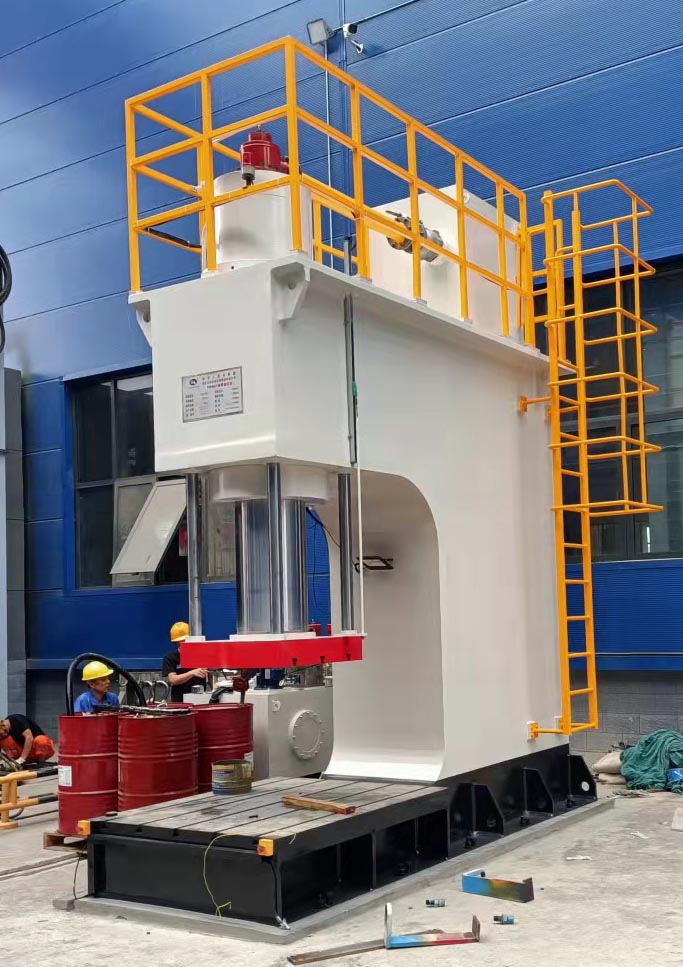

500 Ton C-Type Single Column Hydraulic Press Machine

Application scope:
This C-type single column hydraulic press machine is mainly used for the correction and leveling of plate parts and welding structure parts, as well as the pressing work of shaft parts and the drawing, bending and folding of plate-shaped parts. This machiine is applicable for mining company, and also other industrial applications.

Main Technical Parameters:

(Above parameters are indicative and can be modified according to the customer's actual requirements.)

Machine Features:

• C-type Single column structure.
• The hydraulic press machine is mainly composed of main body, main cylinder, slider, working table, hydraulic system, electrical control system and etc.
• The C type frame is of full steel overall welded structrure, and carried out stress relief annealling treatment. It's firmly fixed onto the foundation ground by anchor bolts. With sufficient strength and rigidity.
• It's provided with T-slots on the surface of slider ram and lower working table.
• The main cylinder is installed on the top beam.
• The main cylinder and piston rod are good quality 45 forging steel.
• The hydraulic system and pump motor are placed on the top of the machine body.
• The maintenance platform is also provided on the top of the machine body.
• Siemens PLC and display to control and monitor the whole operation.
• The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
• Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
• The protection grade of all electrical components is not less than IP54.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.

Questions and Inquiry:

If you have any questions and interest about our machines, please feel free to contact with us!
