Horizontal Railway Locomotive Wheel Assembly And Disassembly Press

Hubei Heqiang Horizontal Railway Locomotive Wheel Assembly And Disassembly Press, Hydraulic Wheel Press

Hubei Heqiang Machinery is the leading manufacturer of Wheelset and Bearing presses in China. Now it covers more than 80% of the China market on CNC Wheelset Presses. We offer the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are applicable to assemble and disassemble the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both wheelset maintenance and mass production applications.

Application scope of the Hydraulic Wheel Press:

This double cylinder wheel press is a fully automatic design. It's used to mount and dismount the railway wheels and gears etc. safely and effectively for railway rolling stocks. It can generate, record, save and print the pressing curves. Only required one operator to operate the wheel press machine. An high-pressure oil injection pump is optional for easy wheel dismounting.

Technical parameters of the Automatic Wheelset Press:

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)

Machine features of the Wheel Press-fitting machine:

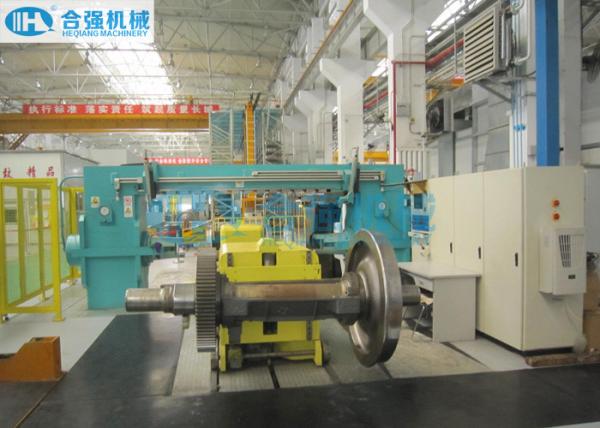

• The Machine is a horizontal hydraulic wheel press and will be installed in a pit.
• Gantry frame structure. Double-end cylinder pressing.
• Only need one positioning to proceed 2 wheels' mounting and dismounting without turning over the axle.
• Special patented centring devices at both ends of two ram cylinders for center hole positioning. The centre can insert into the center hole of both ends of the axle for wheelset positioning. During the whole operation process, it can ensure that the axle center line will be completely concentric with the two ram cylinder centerline to make the ram end face fully matched with the axle end face, without damage on axle center hole and preventing axle from upsetting.
• Unique Invention patented cylindrical ram for wheel mounting.
• Movable slider device with at 2 replaceable inserts to block the wheels, gears or brake discs for dismounting. It's the original patent in China.

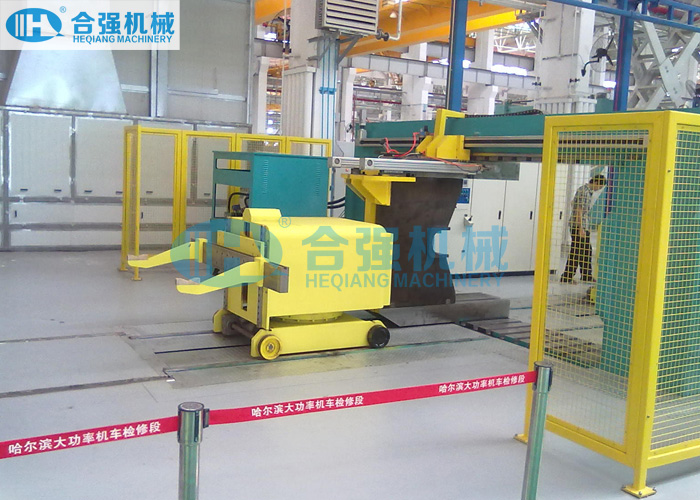

• An electrical support trolley is provided for wheelset pre-assembly and loading/unloading onto/off from the press. It will exit from the press during the operation.
• A gearbox support is provided to support the gearbox during the whole mounting and dismounting process.
• Siemens S7-300 PLC and AdvanTech Industrial computer to control the operation. User-friendly HMI.
• The wheel mount press can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the pressure vs displacement curve and other results onto the screen and printer.

After-sale Service:

• Hubei Heqiang can provide the service of installation, commissioning, test, training, maintenance and after-sale service etc.
• The warranty period will be one year (or as per required) from the date of site acceptance qualified.
• During the warranty, we will be responsible to repair or replace any damaged component caused due to the machine quality at our cost. The warranty of the replaced parts will be one year from the date of replacement.
• After the warranty period, we will provide a wide range of technical support and spare parts service.
• We will provide free upgrade of the control software by sending the upgrade software in CD format.
• The after-sale service includes all aspects, such as mechanical, hydraulic, electronic control, operation, training, software upgrade, etc.
• We will keep sufficient stock of the basic spare parts.

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
