    Automatic Double Cylinder Locomotive Wheelset Press 350 Tons CNC Controlled

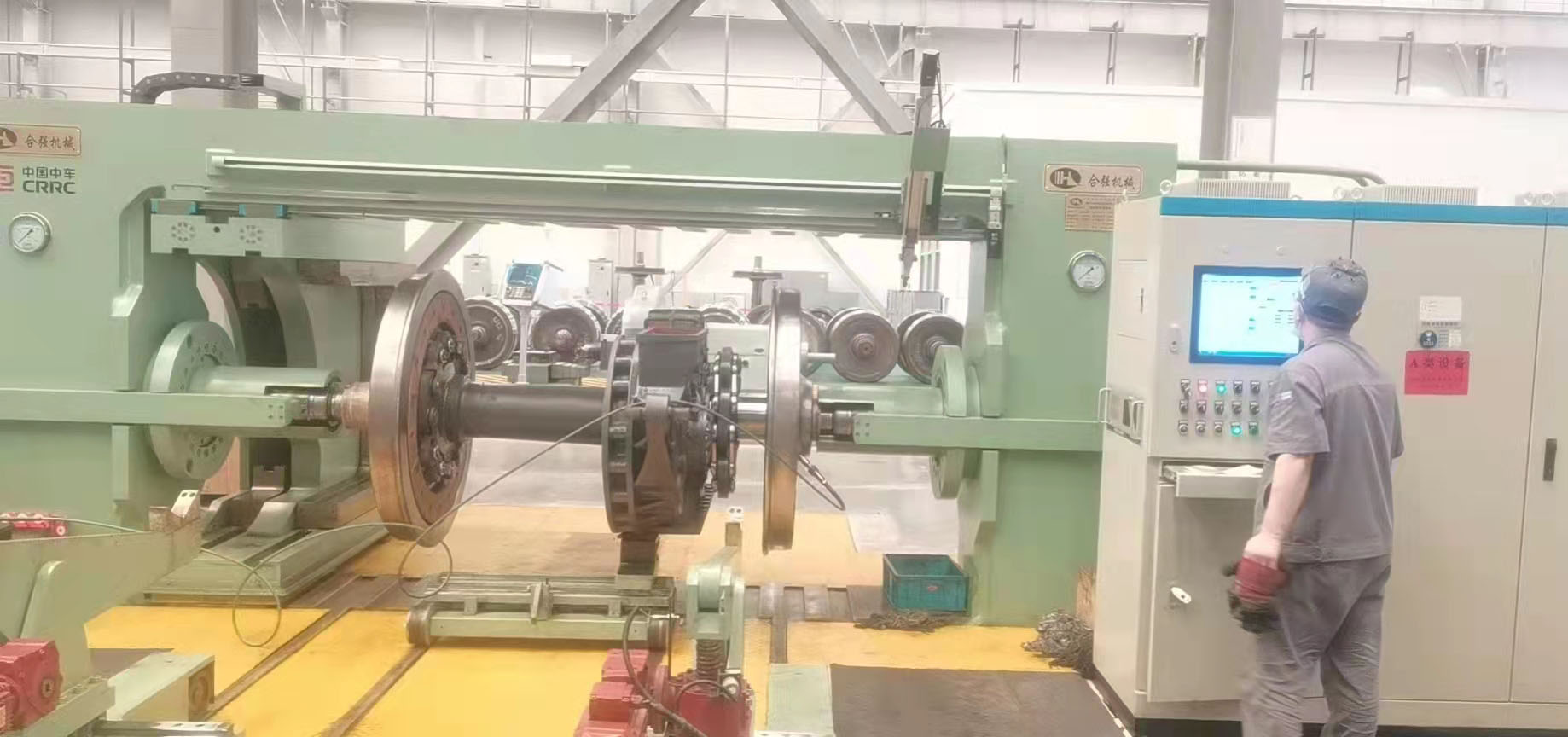

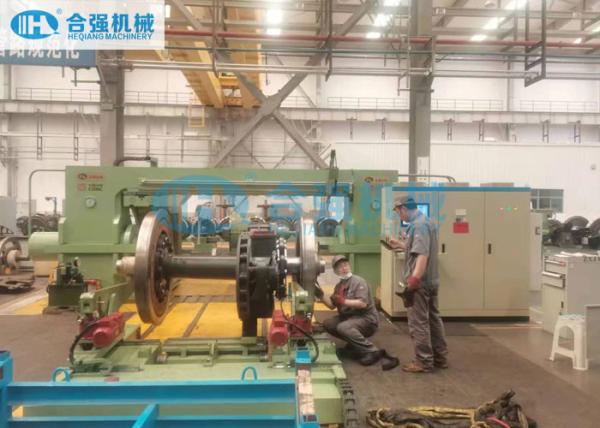

    Automatic Double-Cylinder Locomotive Wheelset Press

    Railway Horizontal Wheel Mounting and Dismounting Press Machine


    Hubei Heqiang Machinery is the No.1 manufacturer of wheelset presses in China. We can offer the most advanced wheel press machines available in the railway applications. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, driven gears and bearings). With both single and double cylinder version available for option.


    Application scope:

    This fully automatic double-cylinder wheelset press is mainly used to mount, dismount and back pressure test the wheelsets of urban vehicles, passenger cars, locomotive etc. It can monitor and record the pressing data, so as to export the pressing curve report. Only one operator required to operate the press. With high-pressure oil injection pump for easy wheel mounting and dismounting.


    Technical parameters:

    Pressing force350 tons
    Number of Ram cylinder2 pcs (1 left + 1 right)
    Maximum piston stroke900mm
    Fast forward speed0~20 mm/s, adjustable
    Pressing speed0~5 mm/s, adjustable
    Return speed0~24 mm/s, adjustable
    Max centre load8000 kg
    Axle Support Trolley1 set, motorized
    Max trolley load5000 kg
    Gearbox support1 set
    Hydraulic system pressure31.5MPa
    Main power supply (3-ph, AC)380V/50HZ or as per required
    Pressure transducer accuracyNot more than 0.25%FS
    Displacement transducer accuracyNot more than 0.01 mm
    Inner distance control accuracyLess than 0.5 mm
    Wheel position difference control accuracyLess than 0.5 mm
    Ram positioning accuracyLess than ±0.04 mm
    Resolution of measuring elementsNot more than 0.01 mm
    High-pressure oil injection pump1 set, max pressure 2000 bar
    Maximum Wheelset weight3000 kg
    Axle length1700 ~ 2300 mm
    Wheel diameterΦ750 ~ Φ1200 mm

    (*Above parameters are indicative, and can be modified as per customer's requirements.)


    Machine features:

    • Overall gantry frame structure, with high strength, good rigidity and less deformation.
    • Double-end cylinder pressing
    • Only one positioning to complete both wheels' mounting & dismounting without reversal of the axle.
    • Special patented elastic centring mechanism for center hole positioning.
    • Unique invention patented cylindrical ram for wheel mounting, with high pressing accuracy.
    • Movable resistant column with replaceable inserts for wheelset dismounting.
    • Motorized axle support trolley for wheelset pre-assembly, loading and unloading. It will exit from the machine during mounting / dismounting.
    • Gearbox support can be provided for optional. It will keep supporting the gearbox during mounting / dismounting.
    • Automatic recording of mounting curve of each mounted component.
    • Siemens S7 PLC and Advantech Industrial PC to control the operation.
    • User-friendly human machine interface.
    • With high-pressure oil injection pump for easy wheel mounting and dismounting.

    Warranty & After-sale Service:

    • One year of free warranty period.
    • Free spare parts during warranty.
    • Our engineers are available for oversea service to carry out the installation and commissioning work.
    • Also the customer can take the installation work themselves as per our instructions and we provide installation guidance and commissioning.

    If you are interested in our wheel presses, please feel free to contact us for more information.
