    350 Ton Horizontal Wheel Press Machine Dismounting Wheels

    Railway Horizontal Wheel Press Machine , Wheel Dismount And Backpress Machine

    Application Scope:
    The wheel press machine is applicable for wheelset dismounting and back pressure test of different types of locomotives.


    Main Technical parameters:

    Maximum dismounting force350 tons
    Ram cylinder Qty1 pc
    Ram cylinder strokeNot less than 700mm
    Applicable wheel diameter
    1150~1250 mm
    Applicable wheel seat diameter245~260 mm
    Applicable axle length2100~2400 mm
    Applicable wheelset weight8 tons
    Rapid approach speed0~20 mm/s, adjustable
    Pressing speed0~3mm/s, adjustable
    Working pressure of Hydraulic systemNot more than 31.5 MPa
    Resolution of pressure sensorNot more than 0.25%FS
    Resolution of displacement sensorNot more than 0.01 mm
    Ram positioning accuracyNot more than +/-0.1 mm
    Noise level during workingNot more than 75 dB
    Machine weightApprox.12 tons
    Overall dimensions (LxWxH)Approx.5100x2400x1400 mm

    (*The detail parameters can be modified as per customer's actual requirements.)

    Main Features:

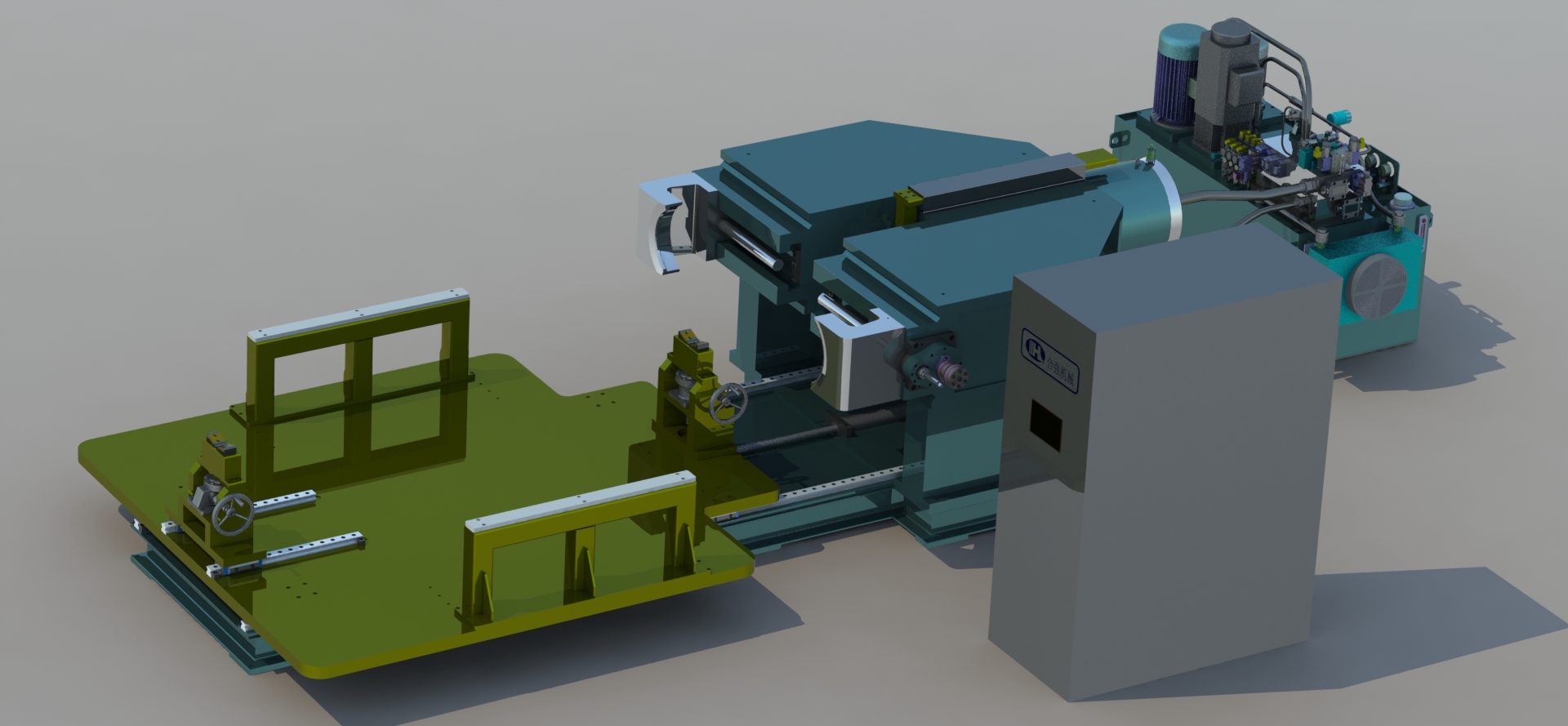

    • The wheel press machine is mainly composed of machine chassis, fixed machine frame (with cylinder device), claw mechanism, detection system, hydraulic system, electrical control system and servo working platform etc.
    • Overall welded structure and carried out overall annealing and stress relieving treatment.
    • Special patented ram device to prevent axle upsetting.

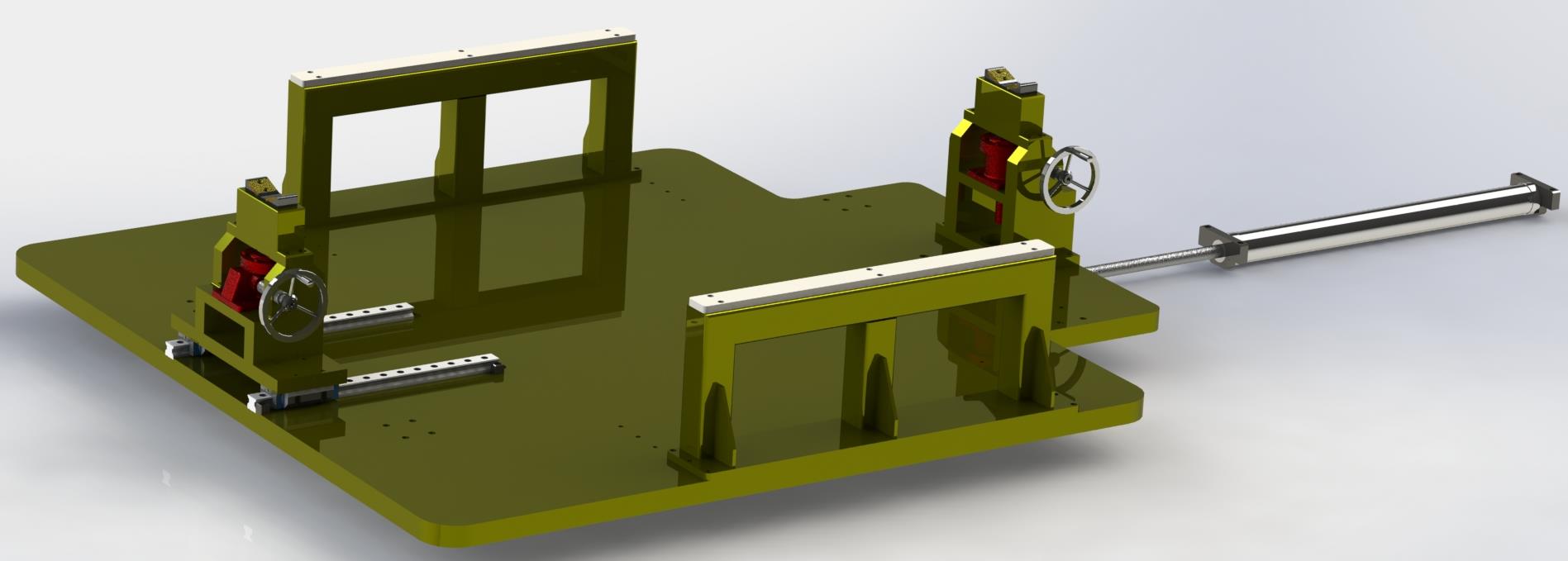

    • Using a movable working platform, to fulfill the wheelset positioning support of domestic/foreign different types of locomotive, and it is fast, convenient and reliable.
    • Two dismounting claws can move synchronously. It can do dismounting by fastening rim inner side or wheel hub dismounting slot.
    • This wheel press machine can configure back pressure test function as per customer needs.
    • Siemens PLC and AdvanTech Industrial computer to control the operation.
    • Convenient human machine interface. It can plot pressing curve of pressure vs displacement etc.
    • Equipped with two operation modes: Automatic & Manual.
    • Only one operator is required to complete all the operations.


    Technical Documents:
    The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

    • Operating and maintenance instruction manual;
    • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
    • Foundation drawing;
    • Spare part list, Special tool list;
    • Product certificate/Factory Acceptance Certificate, packing list, etc.


    Application example:

    • CRRC ZIYANG CO.,LTD.;
    • CRRC Zhuzhou Electrical Locomotive Co.,Ltd;
    • Wuhan Railway Wuhan High-power Locomotive overhaul base;
    • etc.
