    3500kN Locomotive Wheelset Press Machine With Double Cylinders

    Ask Lasest Price
    Brand Name : Heqiang Machinery
    Model Number : HQ01-350
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 20 sets per year
    Delivery Time : 180 days after advance payment & design finalization
    • Product Details
    • Company Profile

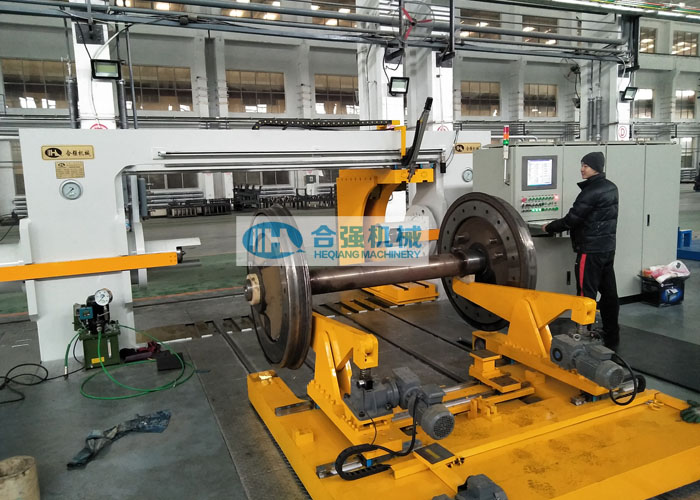

    3500kN Locomotive Wheelset Press Machine With Double Cylinders

    Automatic Locomotive Wheelset Press With Double Cylinders For Wheelset Mounting & Dismounting


    Application scope:

    This Automatic Wheelset Press is mainly used for mounting, dismounting and backpressure test of the locomotive wheelset wheel discs, brake discs and gears. It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time) in the required format. It's only required one operator to operate the press.


    Technical parameters:

    Pressing force3500kN
    Ram quantity2 pcs
    Ram cylinderDouble head cylinders
    Ram stroke0~900mm
    Clearance between top and bottom crossbeam1700 mm
    Fast forward speed0~25 mm/s, adjustable
    Pressing speed0~5mm/s, adjustable
    Max load of the centre device10000 kg
    Axle Support Trolley1 set
    Max trolley load8000 kg
    Gearbox support trolley1 set
    Hydraulic system pressure31.5MPa
    Main power supply3 phase, AC, 380V/50HZ
    Installed powerNot more than 50 kW
    Oil tank volume800 L
    Overall dimension (LxDxH)6600x2700x3000 mm
    Space required8000x7000 mm
    Machine weightApprox.35 tons
    Pressure transducer accuracyNot more than 0.25% FS
    Displacement transducer accuracyNot more than 0.01 mm
    Ram positioning accuracyNot more than ±0.04 mm
    Resolution of measuring elementsNot more than 0.01 mm
    Maximum Wheelset weight8500 kg
    Axle length2100 ~ 2500 mm
    Wheel diameterΦ750 ~ Φ1250 mm
    Axle body diameterΦ140 ~ Φ230 mm
    Wheel seat diameterΦ230 ~ Φ260 mm
    Wheel hub diameterΦ250 ~ Φ390 mm
    Bearing journal diameterΦ120 ~ Φ180 mm

    (*Above parameters are indicative, and can be modified as percustomer's requirements.)


    Machine features:

    • Overall gantry frame structure, with high strength, good rigidity and less deformation;
    • Special patented elastic centring devices for center hole positioning;
    • Double-end cylinder pressing, only need one positioning without reversal of the axle to proceed both side wheels' mounting & dismounting;
    • Unique invention patented cylindrical ram for wheel mounting, with high pressing accuracy;
    • Movable resistant column with replaceable inserts for wheelset dismounting;
    • Electrical support trolley for wheelset loading and unloading. It will exit from the machine during the mounting/dismounting operation.
    • Gearbox support is provided to support the gearbox. It will keep supporting the gearbox during the whole mounting/dismounting process.
    • With high-pressure oil injection pump for wheelset dismounting;
    • Mounting and dismounting the wheelset with a single positioning on the wheel press;
    • Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component;
    • Siemens S7 PLC and Advantech Industrial computer for operation control.
    • High pressure oil injection pump is available for option.

    Cooperation contact:

    If you are interested in our wheelset presses or any assistance required, please contact us for more information!
