3500mm Railway Motorized Turntable Electric Controlled With 20 Tons Capacity, Railway Workshop Equipment

Product Application:
The railway electric turntable is mainly used for transferring the railway bogies from one track to another track in the maintenance depot. The operation is electricly controled on the console or by remote.

Technical Parameters:

(*Above parameters are indicative and can be modified as per customer's requirement.)

Main Features:

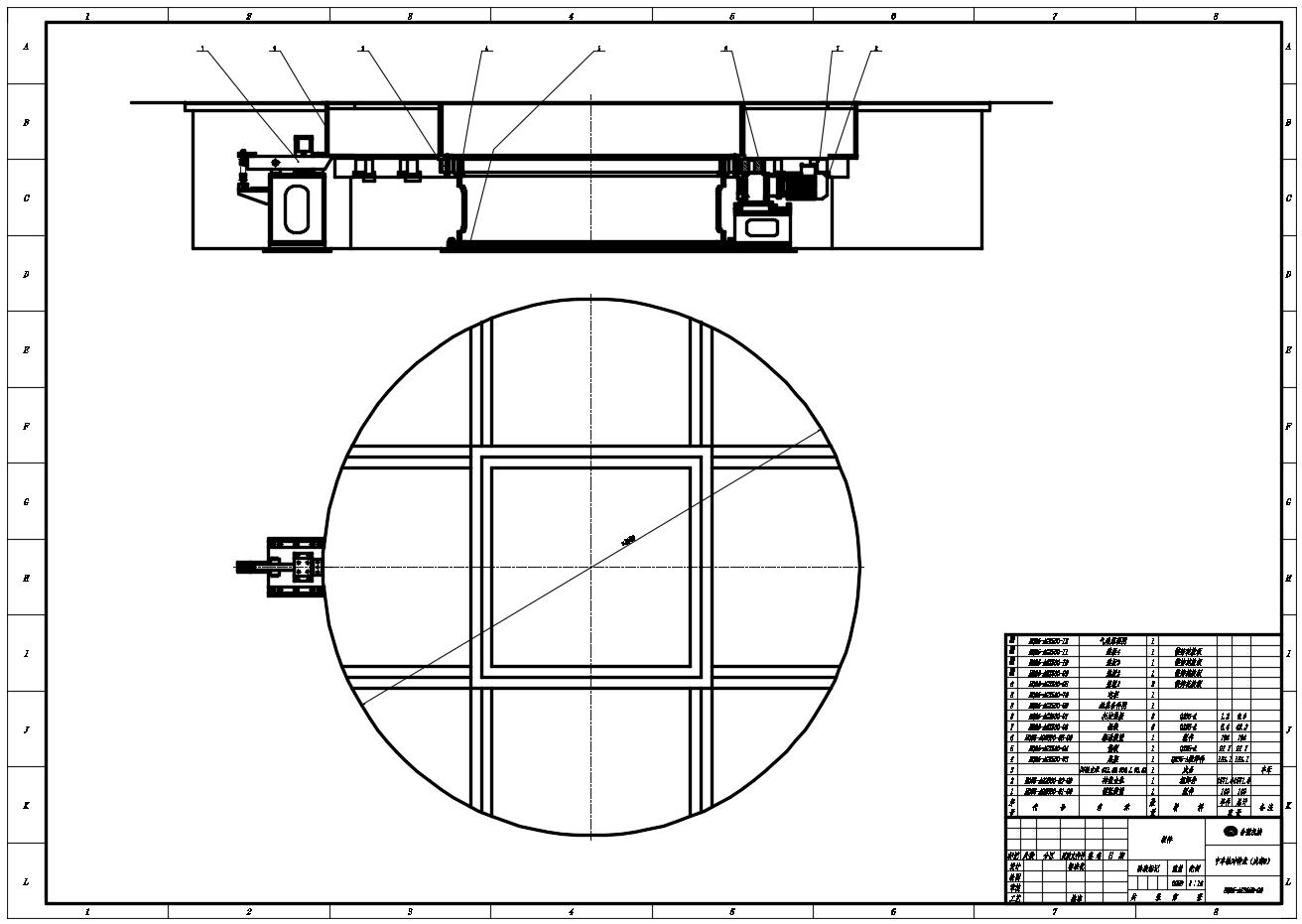

• The bogie turntable is mainly composed of patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, auxiliary supports and power device.
• The operation of turntable is controled on the console or by the remote.
• The bogie turntable can be turned in clockwise or counter clockwise and will stop at any 90° as per required.
• The railway turntable is overall steel structure.
• The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel.
• The railway turntable is equipped with reliable safety protection and insurance measures, and grounding device, it has over-current, short-circuit and other protection functions. The turntable is also provided with emergency cut-off switch to ensure that the turntable can be conveniently stopped in case of emergency, so as to ensure no damage to the turntable and personnel. The electrical and mechanical parts are provided with moisture-proof, high temperature proof and dust-proof measures.
• Pit foundation required for installation.

Technical Documents:
The following technical documents will be supplied along with the railway turntable when delivery in 3 printed-copy and 1 E-copy in English language:

• Operating and maintenance instruction manual
• General arrangement drawing, Foundation drawing
• Electrical schematic diagram
• Lift of Spare part and Special tool
• Product certificate

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
