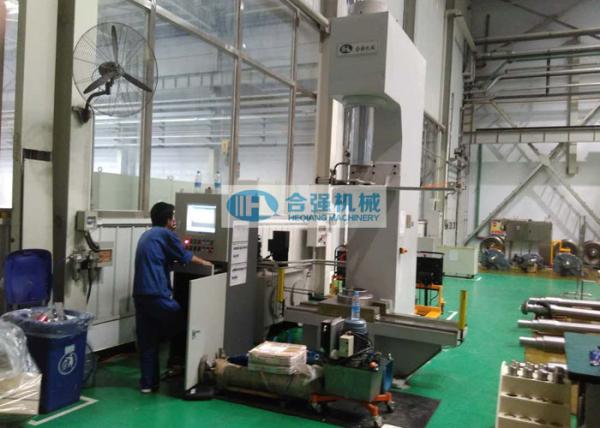

200 Tons Railway Wheelset Gear Assembly Press Vertical Design , Vertical Gear Wheel Press Machine

Application scope:
This Wheelset gear assembly press is mainly used to mount and dismount the driven gear and axle, gear and gear axle for 2nd grad of driven gearbox of EMUs, Metro, Light rail, Urban vehicles. It's of vertical type structure.

Technical Parameters:

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main Features:

• The wheel gear press machine is mainly composed of machine body, gear installation movable platform, pneumatic system, press-in mechanism and its hydraulic system, mobile high-pressure oil injection system, electrical control system and protection devices.
• The machine body is of C-type structure. It's welded by good quality steel plates and carried out stress relief annealing treatment. The body is fixed onto the ground by anchor bolts. With sufficient strength and rigidity.
• Equipped with a movable working platform for placing the axle and griven gear, also for transferring these workpieces.
• Gear installation movable platform for the dismounting of different types of axle and gear.
• Special centering mechanism for the end of the piston rod.
• Mobile high-pressure oil injection system (Germany MAXIMATOR) is used for oiling dismounting of the gear wheel.
• Only one operator required to complete the whole pressing opeation.
• Siemens PLC and AdvanTech industrial computer to control the opeation.
• The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
• Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
• All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.

Technical Documents:

The following technical documents will be supplied along with the wheel gear press machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

• Operating and maintenance instruction manual;
• General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
• Foundation drawing;
• Spare part list, Special tool list;
• Product certificate/Factory Acceptance Certificate, etc

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.

Questions & Inquiry:

If you have questions or interest in our machines, please feel free to contact us for more information.
