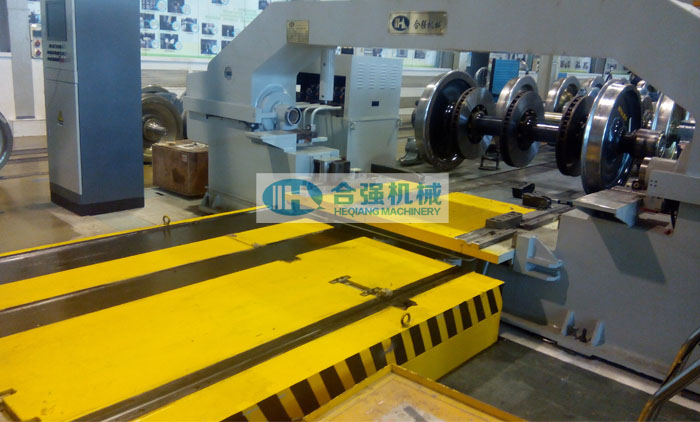

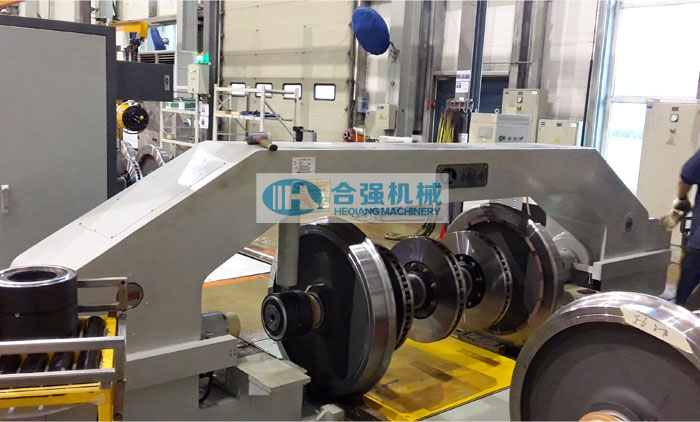

Railway Automatic Wheel Bearing Press Machine For Mounting Various Railway Rolling Bearings

Application scope:
This Wheelset Bearing Mounting Press is applicable for mounting the rolling bearings onto the axle. It can mount either single end bearing separately, also can mount both ends bearings simultaneously. It's suitable for all railway vehicles (passenger cars, wagons, metros, EMU etc.). It can record, save and print the pressing curve (Pressure vs displacement, pressure vs time). It's only required one operator to operate the press.

Technical parameters:

(*Above parameters are indicative, and can be modified as per customer's requirements.)

Machine features:

• This bearing press machine is mainly composed of overall gantry frame, main cylinder, lifting device, guide device, measurement device, bearing positioning device, hydraulic system and electrical control system etc.
• No foundation pit required.
• Gantry frame structure is of Pass-through type design.
• With lifting type work platform;
• Double-head ram cylinders, installed with special patented upsetting centres at the end.
• Automatic component positioning.
• Mounting both end bearings with a single positioning.
• Automatic mounting separately of single end bearing.
• Automatic mounting simultaneously of both end bearings.
• Automatic recording of pressing curve and can print the curve.
• It can automatically and real-time detect and record the pressing force, adhesion force, pressure difference and holding time during bearing mounting, and automatically judgement: qualified or not.
• The press can automatically judge whether the bearing is mounted into position, and start the pressure holding.
• It has the functions of data storage, curve recording, intelligent judgment, curve merging, automatic HP printing of A4 paper in the form of graphics, etc.
• Siemens PLC and AdvanTech IPC to control the operation.
• Unique hydraulic servo system.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
