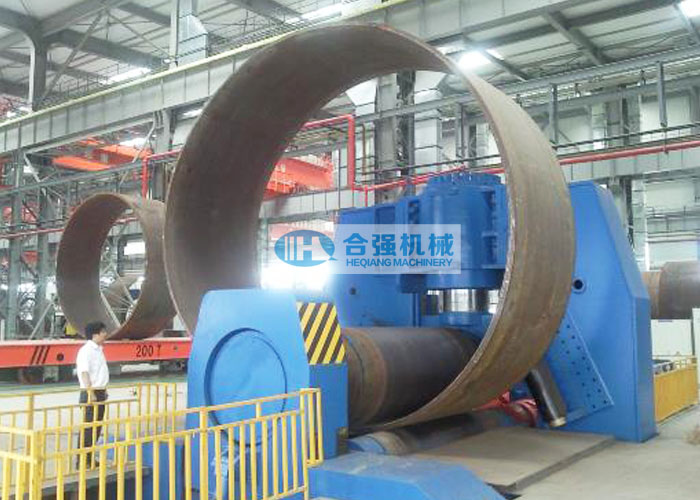

80mm Thick Plate 3 Roller Plate Bending Machine NC Controlled Full Hydraulic Drive

Main Technical Parameters:

*Above parameters are indicative and can be modified as per customers's actual requirements.)

Machine Features:

• It's a NC controlled level down type 3 roller plate rolling machine, Fully hydraulic drive.
• It can bend the metal sheet into cylindrical, arc and cone-shaped shells, and can meet the pre-bending, round rolling, circle correction, coiling and other process operations at the same time.
• The upper roll and two lower rolls are all main drive rolls. The upper roll can move up and down and the lower rolls can move horizontally.
• One-time feeding to complete the plate pre-bending and bending work.
• The machine is of reasonable design, adopt advanced and mature technology. The functions of each part meet the application requirements and have enough margin. The structure is simple and compact, and the layout of each functional part and auxiliary facilities is reasonable.
• The leveling and movement of the upper and lower rolls, the reset of the inverted head rack and the automatic adjustment are achieved by numerical control.
• The bending machine is equipped with a simple and reliable alignment device. (It's also applicable for hot rolling.)
• The machine has perfect self-locking and interlock protection functions, and has automatic power-off protection device to ensure the safety of operators and equipment.
• The operating system of the rolling machine has enough operation prompt, alarm display and fault reason display, so that the operator can quickly remove the fault.
• All motors, electrical components, bearings, hydraulic pumps, hydraulic components and other purchased parts and components are high-quality products of international or national famous brand products.
• All work rolls adopt self-aligning roller bearings.
• All work rolls are roll steel forgings, carried out overall quenching and tempering treatment. The hardness is HQ260~300.
• The machine frame and chassis are Q235B structure steel welded component, with sufficient strength and rigidity. The machine frame is carried out stress annealing relief treatment after welding.
• SIEMENS PLC, AdvanTech IPC

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
