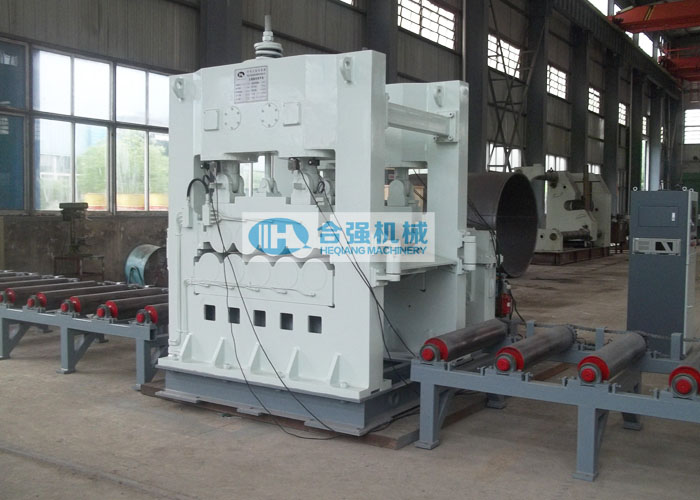

5~20mm Thick 1500~3000mm Width 9 Roller Plate Straightening Machine

Application scope:

This plate straightening machine is applicable for the leveling work of the deformed or bended plates.

Machine Features:

• The machine is a mechanical type. It's consisted of machine frame,movable crossbeam, lower cross beam, mani transmission evice, work roll assembly, support roll assembly, downpress mechanism, balance device, guide rolls and electrical control system etc.
• 4 column frame type structure, with high strength and rigidity;
• The work rolls and support rolls are all carried out surface hardening treatment and flaw detection
• Mobile crossbeam, work roller and side guide rollers can parallel lift simultaneously; the guide rollers also can parallel lift separately.
• The sheets to be levelled can feed from both sides, and leveled repeatly；
• It's suitable for the leveling of medium plate, high-precision and high strength plate.
• Digital display, PLC control. Visual input, edit, modify and store process parameters.

Other Model for Optional:

(*Above parameters are indicative and can be modified as per customers's actual requirements.)

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
