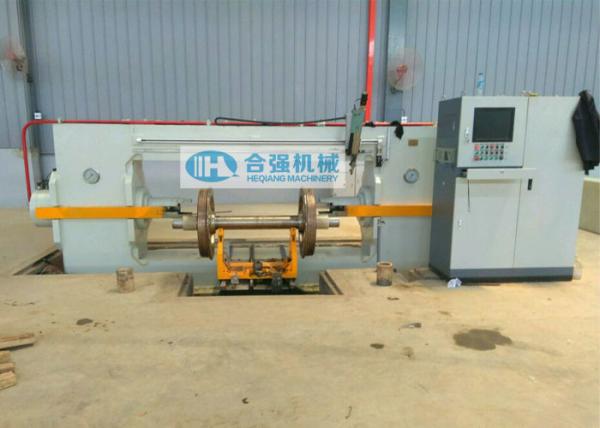

300 Tons Double Cylinder Wheelset Mounting Press Machine, Railway Wheel Assembly Machine

Application scope:
This 300 Tons Double Cylinder Wheel Mounting Press Machine is used for the mounting work of the wheelset wheels and axles for railway passenger cars and wagons. It can generate, record, save and print the pressing curves (Pressure vs displacement, pressure vs time). It's only required one operator to operate the wheel press.

Technical parameters:

(*Above parameters are indicative, and can be modified as per customer's actual requirements.)

Machine features:

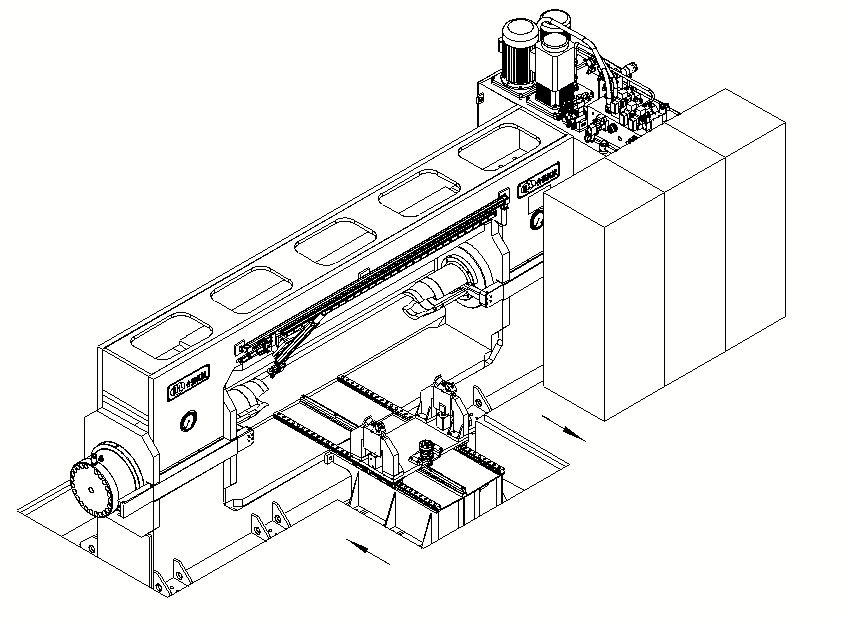

• Overall gantry frame structure, with high strength, good rigidity and less deformation.
• Special patented elastic centring mechanism for center hole positioning.
• Double-end cylinder pressing, only need one positioning to proceed both side wheel mounting without reversal of the axle.
• Unique invention patented cylindrical ram for wheel mounting, with high pressing accuracy;
• Special patented centering mechanism. When positioning, the centre points into the center hole of the axle. When mounting, it will be retreated into the center hole and the end face of the centre will fit the end face of the axle.
• The movable trolley is only for wheelset transportation and will not engage in the mounting operation.
• Mounting the wheelset with a single positioning on the wheelset press;
• Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component.
• Siemens S7-300 PLC and Advantech Industrial computer to control the operation.
• Applicable to the wheelset with standard, narrow, meter and board gauge.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.

Spare parts:
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.

Cooperation contact:

If you are interested in this wheel press machine or any assistance required, please feel free to contact with me by email or Whatsapp,Wechat, Skype. We'll give you feedback in the first time.

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
