3000kN Single Cylinder Horizontal Wheel Press Machine For Railway Wheelset Maintenance

Overview of Hubei Heqiang:
Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel set pressing equipment available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.

Application Scope:

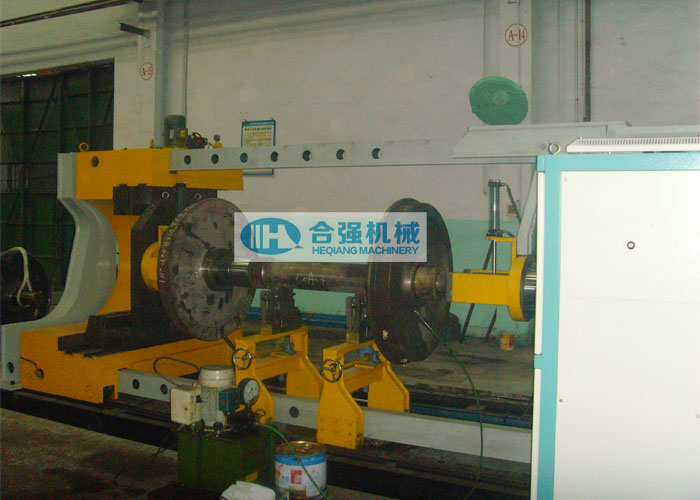

This horizontal Wheel Press Machine is applicable for the mounting and dismounting of wheelset wheels and axle of different types of railway rolling stocks. It's also applicable for mining and steel etc. industry applications. It needs to turn 180° of the axle/wheelset during the pressing.

Technical Parameters:

(*Above parameters are for reference. It can be adjusted as per customer's actual requirements.)

Main Structure and Features:

• The wheel press machine is mainly composed of cylinder column, resistant column, rear column, support rods, chassis, caliper mechanism, support brackets, hydraulic system, eletrical control system.
• Modular structure: The cylinder column and resistant column are combined together via two support rods to form a force frame. The rear clumn is only to supprt these two support rods.
• Single head ram cylinder, Movable resistant column;
• Special anti-upsetting centering mechanism;
• 2 sets of caliper mechanism for positioning the resistant column at the different positions required;
• 2 sets of support bracket for supporting the axle/wheelset;
• Siemens PLC and AdvanTech indusial computer;
• Button operation, easy to learn;
• Unique hydraulic sysrem, adjustable pressing speed;
• Manual hoisting, bracket for supporting;
• It needs 180° turn of the axle/wheelset during the pressing;
• With pressure force curve record system. It can generate, record, save and print the curve of pressing force vs displacement.

Technical Documents:

The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

• Operating and maintenance instruction manual;
• General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
• Foundation drawing;
• Spare part list, Special tool list;
• Product certificate/Factory Acceptance Certificate, packing list, etc.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.

Application example:

• Kenya Railways;
• Vietnam Railways;
• Myanmar Railways;
• Clients from Indonesia, Iran, Mongolia and etc.

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
